Complete Guide to Analog Integrated Circuit (IC) Design

Last Updated on September 4, 2025 by Sasmita

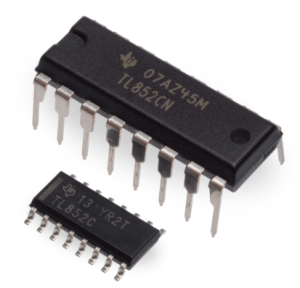

Introduction

Analog Integrated Circuit (IC) design is a crucial branch of electronics engineering that focuses on circuits dealing with continuous-time, real-world signals such as sound, light, temperature, and radio waves. Unlike digital ICs, which process binary data (0s and 1s), analog ICs amplify, filter, and manipulate signals that vary smoothly over time. From power management chips to audio amplifiers and sensor interfaces, analog IC design plays a vital role in bridging the gap between the physical world and digital processing systems.

What is Analog IC Design?

Analog IC design is the process of creating integrated circuits that process analog signals. These circuits are used to perform tasks such as amplification, voltage regulation, signal conditioning, and frequency generation. They are typically implemented using transistors, resistors, capacitors, and sometimes inductors, all fabricated on a single semiconductor substrate.

Analog IC design requires deep knowledge of device physics, circuit theory, and system-level behavior, as it is highly sensitive to noise, parasitics, and process variations.

Types of Analog ICs

Analog ICs are generally categorized into two types:

Linear ICs

  • Operate over a range of input signals and produce proportional outputs.
  • Examples: Operational amplifiers, voltage regulators, audio amplifiers.

Nonlinear ICs

  • Operate on signals in a non-proportional way, often for modulation, demodulation, or switching.
  • Examples: Mixers, oscillators, analog multipliers.

Building Blocks of Analog IC Design

Some of the most common functional blocks used in analog ICs include:

  • Operational Amplifiers (Op-Amps): Used for signal amplification, filtering, and mathematical operations.

  • Current Mirrors: Maintain stable current references across circuits.

  • Voltage References: Provide accurate and stable voltages for biasing.

  • Filters: Remove unwanted frequency components from signals.

  • Oscillators: Generate periodic waveforms for clocks or carriers.

  • Power Management Circuits: Voltage regulators and charge pumps for powering electronic systems.

Design Specification

Just like Digital IC design, analog IC design also starts with a set of specifications and features. Then, functional models of the various functions are used to narrow down the constraints and lead to decisions on device size, type, and other process features. This may include transistor selections, high-level floor planning, inclusion of inductor and capacitor technologies, and desired figure-of-merit for the IC and sub-circuits.

Architecture hardware description language (AHDL), such as VHDL-AMS, is used to perform simulations at high levels to determine the constraints of sub-blocks. A test-bench may also be developed at this stage that is later used in simulation.

Subcircuit Design, Physical Layout, and Simulation

Analog Integrated Circuit (IC) design is a systematic process that converts circuit specifications into a manufacturable silicon chip. Three essential stages in this process are subcircuit design, physical layout, and simulation. Each stage plays a crucial role in ensuring that the final IC meets performance, power, and area requirements.

1. Subcircuit Design

Subcircuit design is the stage where the overall system is divided into smaller functional blocks (subcircuits), which are then designed individually.

Steps:

  • Specification Definition: Define key parameters such as gain, bandwidth, noise, power consumption, and voltage/current ranges.

  • Block Partitioning: Break down the IC into subcircuits like amplifiers, current mirrors, differential pairs, oscillators, voltage references, etc.

  • Transistor-Level Design: Each subcircuit is implemented using MOSFETs, BJTs, or a mix of devices. Sizing of transistors is critical for performance.

  • Interconnection: Ensure compatibility between subcircuits (e.g., matching voltage levels, bias currents).

Example Subcircuits:

  • Operational Amplifier (Op-Amp) stages (input differential pair, gain stage, output buffer)

  • Voltage Reference (Bandgap circuit)

  • Analog Filters

2. Physical Layout

Once the subcircuits are designed, they must be translated into a physical representation that can be fabricated on silicon.

Key Aspects:

  • Device Placement: Place transistors, resistors, capacitors in a way that minimizes area and parasitics.

  • Routing: Connect devices using metal layers while considering resistance, capacitance, and inductive effects.

  • Matching and Symmetry: Critical in analog ICs (e.g., current mirrors, differential pairs). Techniques like common-centroid layout and interdigitated structures are used.

  • Guard Rings & Shielding: Reduce noise coupling and improve isolation.

  • Design Rule Check (DRC): Ensure layout follows fabrication rules (minimum width, spacing, etc.).

  • Layout vs. Schematic (LVS) Check: Verify that the layout corresponds to the designed circuit.

Example Techniques:

  • Fingered transistors for large MOSFETs to reduce mismatch and improve speed.

  • Poly resistor layout with dummy structures for accuracy.

3. Simulation

Before fabrication, the design is validated through simulation to ensure it meets specifications under all conditions.

Simulation Types:

  • Pre-Layout Simulation: Uses only circuit schematics without considering parasitics. Fast, but less accurate.

  • Post-Layout Simulation: Includes parasitic capacitances and resistances extracted from layout, giving a more realistic performance prediction.

Simulation Analyses:

  • DC Analysis: Bias points, power consumption, operating regions.

  • AC Analysis: Gain, bandwidth, frequency response.

  • Transient Analysis: Time-domain response, slew rate, settling time.

  • Noise Analysis: Thermal noise, flicker noise impact.

  • Monte Carlo Simulation: Checks performance variations due to process mismatch.

  • Corner Analysis: Evaluates worst-case performance under process, voltage, and temperature (PVT) variations.

Analog Abstraction Levels

Below are the abstraction levels of the analog IC design process:

1. Device Level

  • Description: The lowest abstraction level, focusing on semiconductor device physics.

  • Elements: MOSFETs, BJTs, diodes, resistors, capacitors.

  • Considerations: I–V characteristics, threshold voltage, channel length modulation, noise, mismatch.

  • Tools: SPICE models, TCAD simulations.

2. Circuit (Transistor) Level

  • Description: Devices are connected to form basic circuits that achieve certain functions.

  • Elements: Current mirrors, differential pairs, amplifiers, bias circuits.

  • Considerations: Gain, bandwidth, slew rate, stability, noise.

  • Tools: SPICE schematic simulation (DC, AC, transient).

3. Block (Functional) Level

  • Description: Multiple transistor-level circuits are combined into functional blocks.

  • Elements: Operational amplifiers, comparators, ADC/DAC building blocks, oscillators, filters.

  • Considerations: Performance specs like input offset, common-mode rejection ratio (CMRR), power supply rejection ratio (PSRR).

  • Tools: Behavioral modeling (Verilog-A, VHDL-AMS, MATLAB).

4. System Level

  • Description: Entire system behavior is described using high-level models, abstracting away transistor details.

  • Elements: Complete mixed-signal systems such as ADCs, PLLs, RF transceivers, power management ICs.

  • Considerations: System specifications (resolution, speed, efficiency, noise floor).

  • Tools: System-level simulators (MATLAB/Simulink, SystemC-AMS).

5. Architecture Level

  • Description: Focus on how blocks interact to meet system requirements.

  • Elements: Topologies (e.g., folded cascode op-amp, sigma-delta ADC, charge-pump PLL).

  • Considerations: Trade-offs between power, area, speed, and accuracy.

  • Tools: High-level simulation, algorithmic exploration.

Analog IC Design Flow

The steps associated specifically with analog IC design can be broken down as follows:

Design specification

  • Specifications
  • Constraints
  • Topologies
  • Test bench development

Schematic flow

  • System-level schematic entry
  • Architecture HDL simulation
  • Block HDL specification
  • Circuit-level schematic entry
  • Circuit simulation and optimization

Physical flow

  • PCell-based layout entry
  • Design rule check (DRC)
  • Layout versus schematic (LVS)
  • Parasitic extraction
  • Post-layout simulation
  • Tape-out

Challenges in Analog IC Design

Designing analog ICs is more complex than digital ICs due to the continuous nature of analog signals. Major challenges include:

  1. Noise Sensitivity: Analog circuits are highly affected by thermal and flicker noise.

  2. Parasitics: Parasitic capacitances and resistances can degrade performance at high frequencies.

  3. Process Variations: Small manufacturing differences can lead to large performance deviations.

  4. Power Consumption: Achieving high performance with low power is critical in portable devices.

  5. Integration with Digital ICs: In mixed-signal systems, isolation is needed to avoid interference.

Applications of Analog ICs

Analog ICs are used in a wide range of electronic systems, including:

  • Consumer Electronics: Audio amplifiers, video processors, power supplies.

  • Communication Systems: Modulators, demodulators, RF front-end circuits.

  • Medical Devices: Signal conditioning for biomedical sensors.

  • Automotive Systems: Sensor interfaces, motor drivers, power regulation.

  • Industrial and IoT Devices: Data acquisition, instrumentation amplifiers, sensor readouts.

Future of Analog IC Design

As technology advances, analog IC design is shifting toward:

  • Low-power design techniques for IoT and wearable electronics.

  • High-frequency and high-speed circuits for 5G/6G and satellite communication.

  • Integration with digital systems (mixed-signal ICs and System-on-Chip).

  • Advanced semiconductor technologies like FinFETs, SiGe, and GaN for improved efficiency.

Conclusion

Analog IC design remains fundamental to modern electronics, enabling seamless interaction between the real world and digital systems. From amplifying audio signals to powering smartphones and enabling wireless communication, analog ICs are everywhere. With the rise of IoT, AI, and 5G/6G technologies, analog IC design will continue to evolve, making it an indispensable area of electronics engineering.
